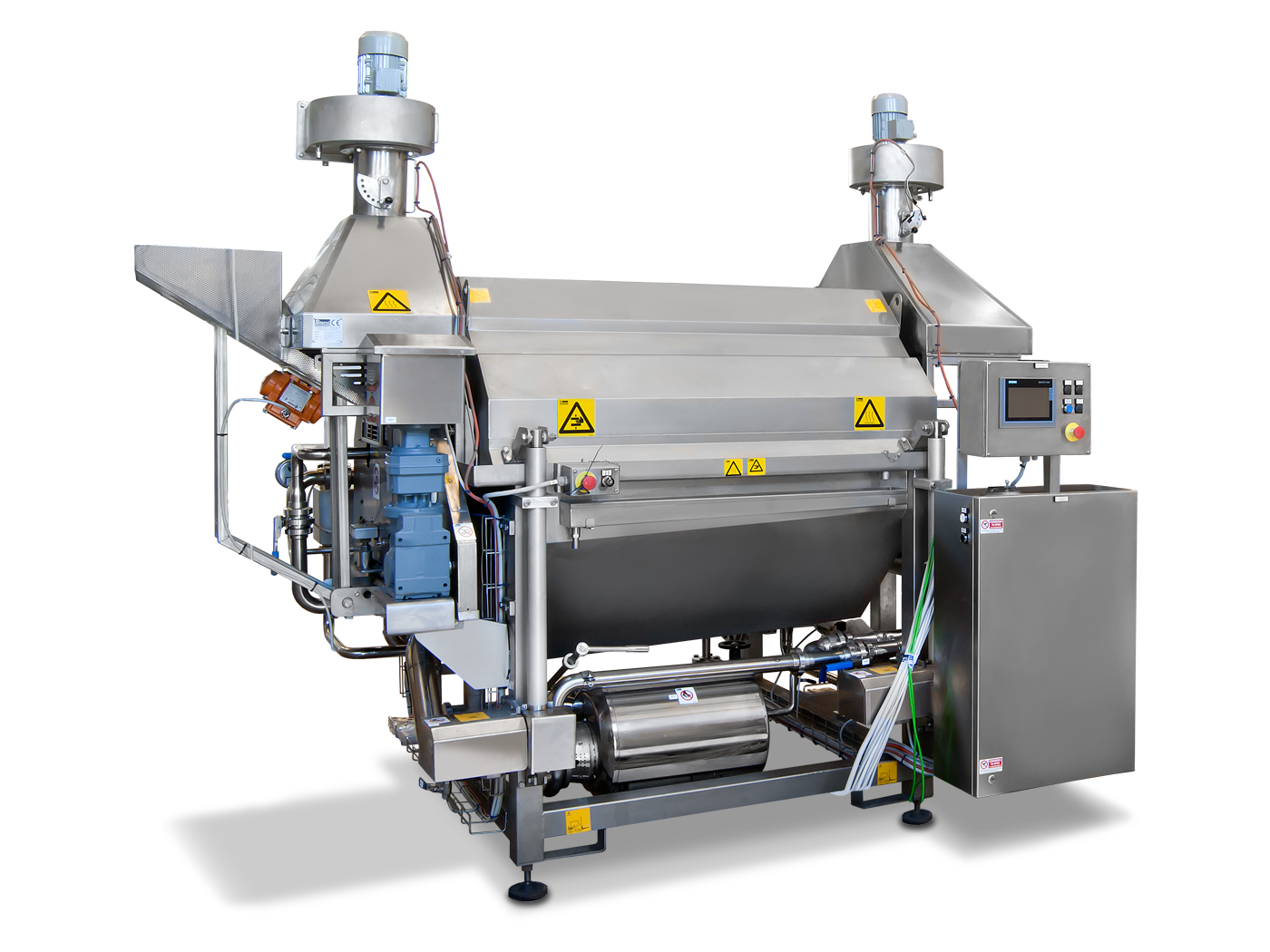

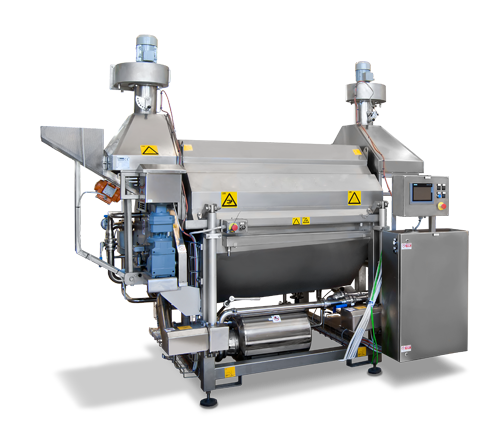

Cooker CR 36.4
patented


It can be used to cook, temper or rehydrate many different products such as vegetables, beans, meat, pasta and rice. The cooker is provided with a Cleaning Assist and Recirculation System (CAR System) that can operate while the system is in production.








Key features



  • High versatility (pasta, rice, meat, vegetables, etc.)
  • High capacity in small dimensions
  • Ease of use
  • Ease of cleaning
  • High energy efficiency




Main technical features







Cooker CR 36.4









It can cook a lot of products


  • Water heating trough the use of direct steam injection system
  • Steam control system on board to mantain the cooking temperature to the customer’s desired value
  • Variable retention time through PLC and frequency drive
  • Cover lifting through “jack-screws” with safety selflocking system
  • Inner net easily demountable through removable clamps (optional)
  • Stainless steel AISI 316 manufacturing (optional)




Production table


CR-36.4
PRODUCT CAPACITY AT INLET (kg/h) 250*
PRODUCT CAPACITY AT OUTLET (kg/h) ~ 400*
ELECTRIC POWER INSTALLED (kW) 3
THERMAL POWER INSTALLED (kcal/h) 70.000
COOKING BASIN CAPACITY (l) 380
WATER CONSUMPTION (COOKING WATER RENEWAL) (l/min) 400/500
WEIGHT (kg) 2300
LID OPENING WIDTH (mm) 700

* Data referred to short pasta inlet (penne/fusilli) for 3,5 mins time. Dimension and technical data are not binding. Storci S.p.A. reserves the right to modify them without notice.

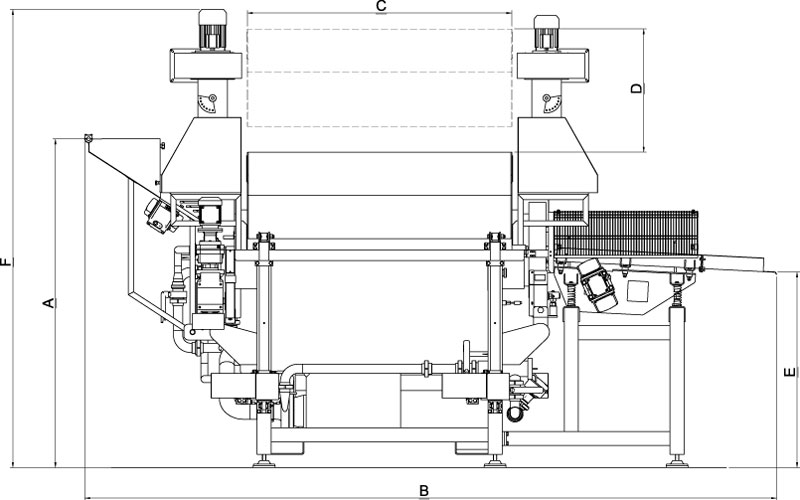

Dimensions


Cottore CR-36.4



Models

Model Basket A B C D E F
CCR 08X12 880x1270 1865 3920 1500 700 1110 2600
CCR 08X18 880x1830 1865 4480 2060 700 1110 2600
CCR 08X24 880x2400 1865 5050 2630 700 1110 2600
CCR 12X12 1220x1270 2100 4420 2000 1000 1350 3130
CCR 12X24 1220x2400 2100 5550 3100 1000 1350 3130
CCR 12X36 1220x3650 2100 6770 4350 1000 1350 3130
CCR 12X48 1220x4870 2100 8040 5650 1000 1350 3130
