Aluminium trays
Aluminium trays for drying

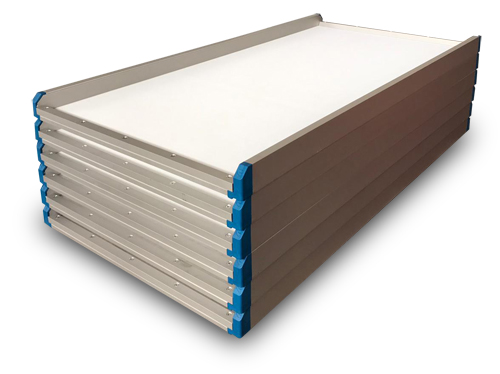

Aluminium trays


Stackable aluminium tray for static dryers: aluminium profile structure, with polyester mesh. Available in two different models. Discover their characteristics. Design entirely carried out by our R&D.






Key features



  • No wood particles in the product
  • Perfect mechanical strength
  • Stackable and compatible with wooden and aluminium trays
  • Produced in Italy in compliance with EU standards




Main technical features

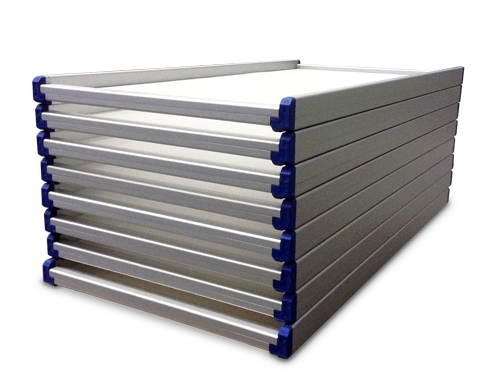

Aluminum trays







For those who choose innovation


  • Round corner ends to avoid interruption during sliding
  • The lower profile is shaped so as to simplify the placement during the phase of automatic stacking
  • The internal metal parts of the tray in contact with the product have a reduced bearing surface
  • The tray hasn't got openings or holes closed by plastic cups, which could allow the entry of damaging debris or the loss of movable parts
  • Minimum rubbing of the aluminium parts, thanks to a special contact element




Production table


ALUMINIUM TRAYS
MODEL DIMENSIONS (mm) MATERIAL WEIGHT (Kg) HEIGHT TRAY PER TROLLEY
TA 30 1200X600X30 ALUMINIUM 2,8 30 60
TA 55 1200X600X55 ALUMINIUM 3,4 55 33

 The dimensions and technical data provided are not binding. Storci S.p.A reserves the right to modify them without prior notice.






Technical sheets
To open or download and print a file click on it


Aluminium trays - Technical Data
