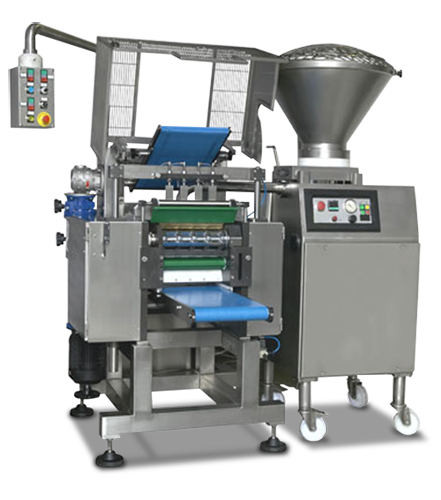

RCA 300-540 C


Machine for producing double-sheet ravioli suitable for medium and large food industry plants. The double overlapped lamination unit positioned at the back of the machine provides free access to the mold and in-line connection with the sheeters. The technical solutions adopted ensure maximum reliability with reduced maintenance requirements.






Key features



  • Double-sheet ravioli production (sheet width 300-540 mm)
  • Mechanical system for extracting the single ravioli pieces from the cutting roller
  • Rod system for filling distribution
  • Double overlapped lamination unit
  • Automatic feed of sheets to the mold using removable conveyor belts
  • Tempered and case-hardened cams and gear wheels




Main technical features











RCA 300-540 C









For medium and big fresh pasta industries


  • Interchangeable molds for producing different shapes: square, round, half-moon, special shapes on request
  • Mechanical system for extracting the ravioli pieces from the cutting roller
  • Continuous filling feeder (mod. AR90) suitable for rich fillings, mounted on wheels and easy to disassemble for cleaning purposes
  • Rods system for filling distribution with double injector, to separate the dosing function and introduction of the filling into the ravioli thus guaranteeing perfect closure of the ravioli even when rich fillings are used
  • Double overlapped lamination unit with rollers located at the back of the machine with mechanical adjustment independent from sheet speed. Indipendent adjustment of the spacers
  • Automatic feed of sheets to the mold using removable conveyor belts
  • Removable conveyor belt for unloading the finished product
  • Machine speed, feeder and mold adjustable by means of a mechanical variator
  • Gearmotors and bearings with life-long lubrication
  • Tempered and case-hardened cams and gear wheels
  • EC compliant electrical system
  • On request:
    Scraps recovery and/or cutting device; electronic adjustment which is independent from sheet speed




Production tables


  RCA 300 B RCA 540 B
Hourly production (Kg/h) 250-350 450-800
Sheet width (mm) 300 540
Installed power (kW) 4.7 7.15
Weight (kg) 740 1800
Dimensions (mm) 1700x1560x1750 1800x1490x1840

 RCA 300 B RCA 540 B
GR PZ/H KG/H GR PZ/H KG/H
2.0 140.000 280 2.0 260.000 525
3.0 100.000 300 3.0 180.000 550
4.0 96.000 380 4.0 165.000 660
6.0 74.000 444 6.0 125.000 755
6.5 55.450 360 6.5 120.000 720
8.0 55.400 440 8.0 103.000 820
11.8 33.000 390 11.8 69.000 830
16.0 24.000 385 16.0 50.000 850

The dimensions and technical data provided are not binding. Storci S.p.A reserves the right to modify them without prior notice. The data provided is purely indicative and depends on the characteristics of the pasta sheet (thickness, elasticity, etc.) and the filling (composition, consistency, density, etc.)..
