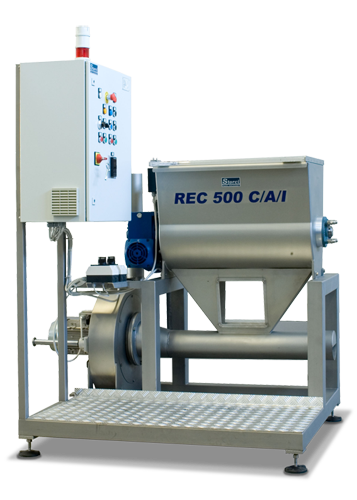

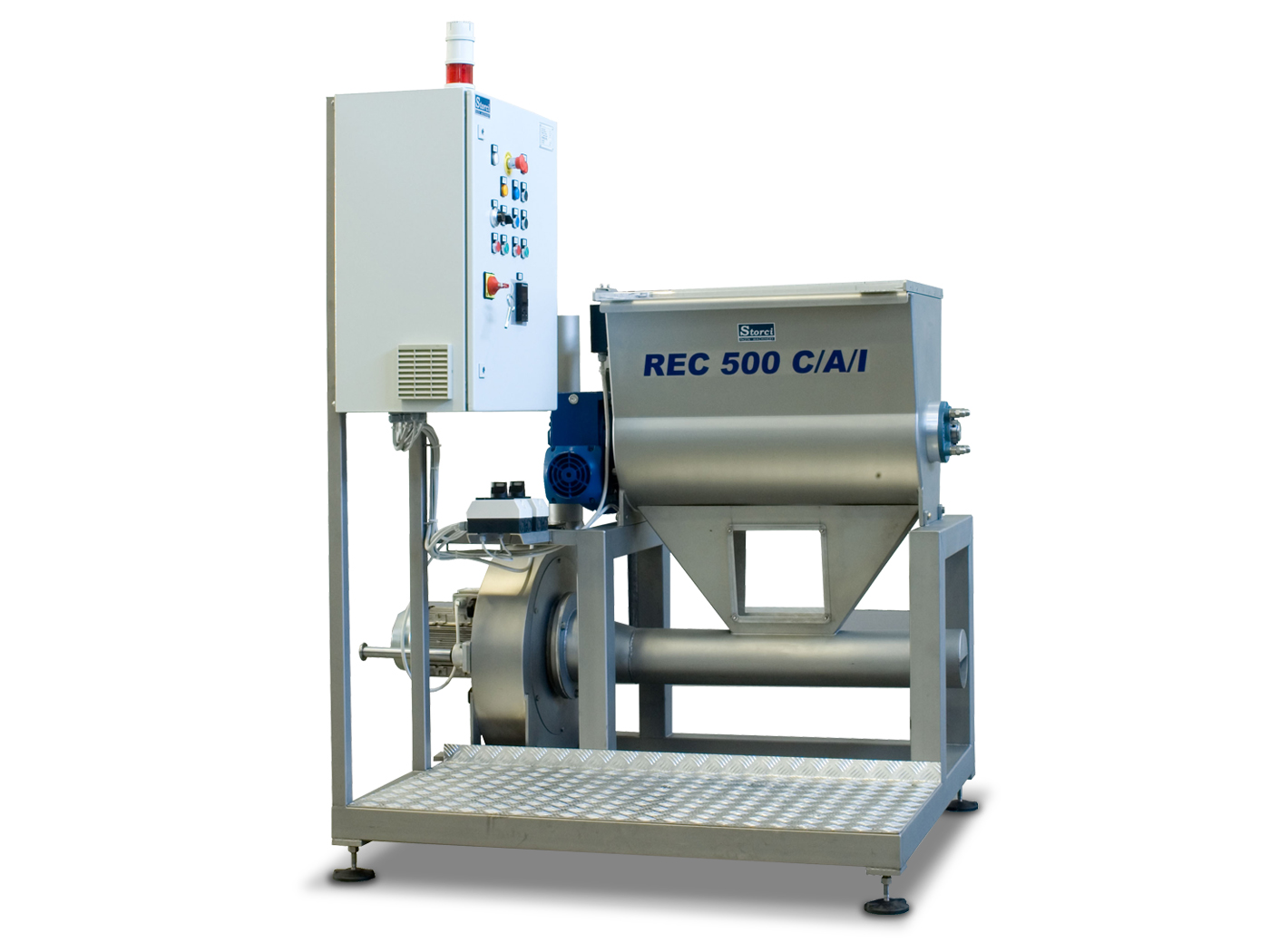

Rec 500 C/A/I

Special unit for the correct recovery of the fresh pasta scraps produced at the beginning of production, during shape changeover operations, filled pasta off-cuts, etc. Allows the user to obtain pasta scraps which can easily be re-kneaded with excellent results.



play Video
Play the video




Key features



  • Unit for recovering fresh pasta scraps: leading ends and tails from production, shape changeover scraps, off-cuts from filled pasta, etc.
  • 130-litre feeder tank
  • Uniform size of the ground scraps and easy re-kneading
  • Openable grinder: for a fast and easy cleaning




Main technical features

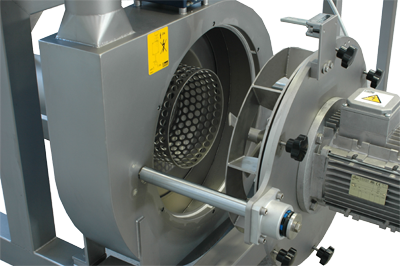

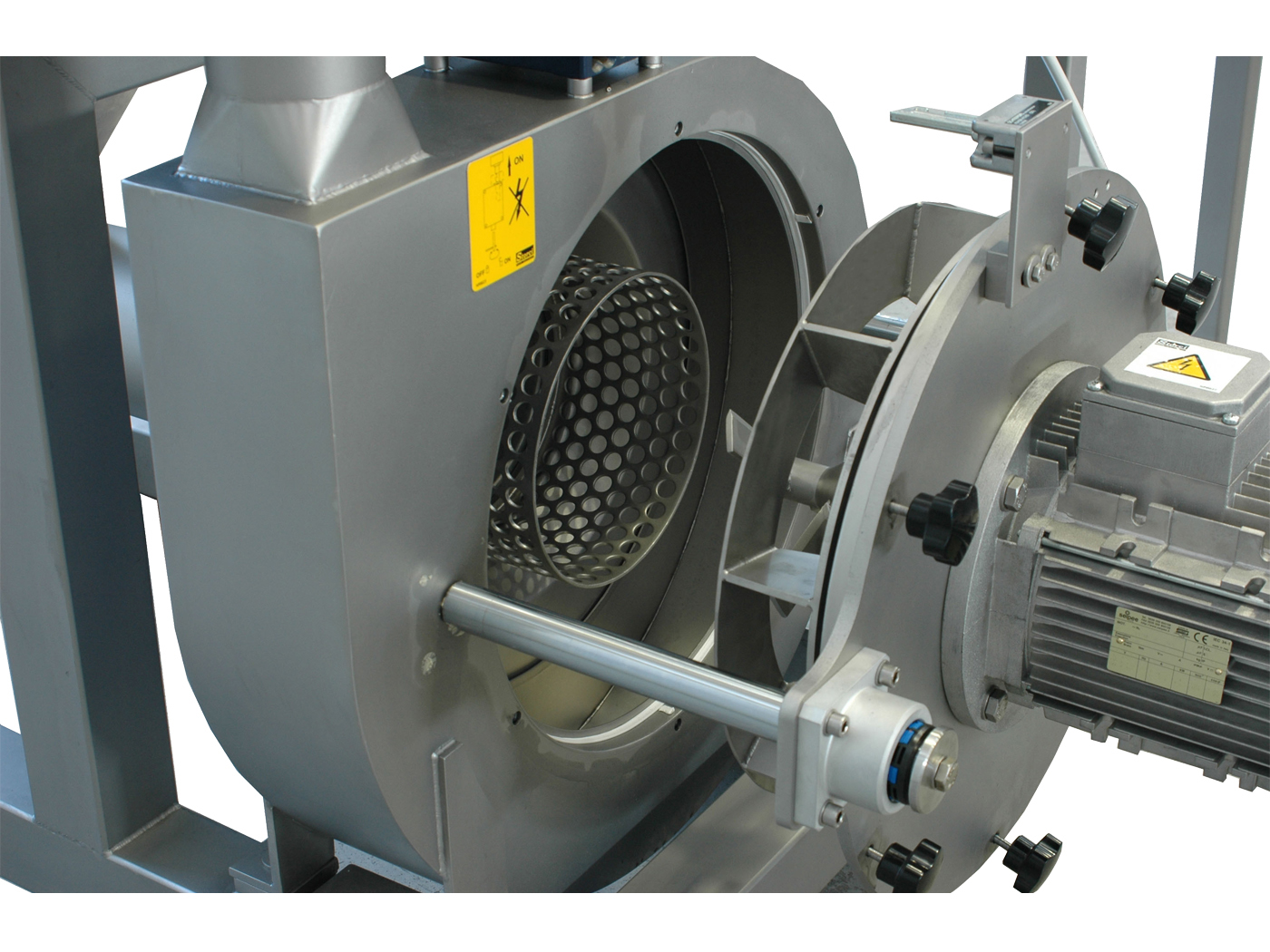

Detail of openable grinder









To avoid throwing away pasta scraps


  • New basket system which forces the scraps through holes (of a set diameter)
  • Load hopper for manual or automatic feeding of the fresh product
  • Top of the range model incorporating a stainless steel blower (high-thickness steel for acoustic insulation) with quick opening (for easy cleaning) of the entire motor and rotor assembly, set on axial guides. 130-litre feeder tank which unloads directly into the grinder
  • Processing capacity (indicative): approximately 300-500 kg/h
  • Suitable for small and medium size pieces




Optional







  • Piping kit, connections, large-radius bend and decanting centrifugal separator
  • Manual or automatic switching valves for multiple feed




Production table


REC 500 C/A/I
MODEL POWER (kW) LENGHT OF PIPING  (m) MAXIMUM GRINDING CAPACITY (kg/h) DIMENSIONS (LxPxH)
C/A/I 4.0 9.5 20 300-500 (*) 1906x1541x2066
C/A/I 7.5 13 28 300-500 (*) 1906x1541x2066
C/A/I 15 21.5 40 300-500 (*) 1906x1541x2066

Note: the data provided is purely indicative and not binding as it may be subject to the variability of products and the line in which units are installed.

(*) for products with a dry surface and maximum, evenly distributed, humidity of 30%.

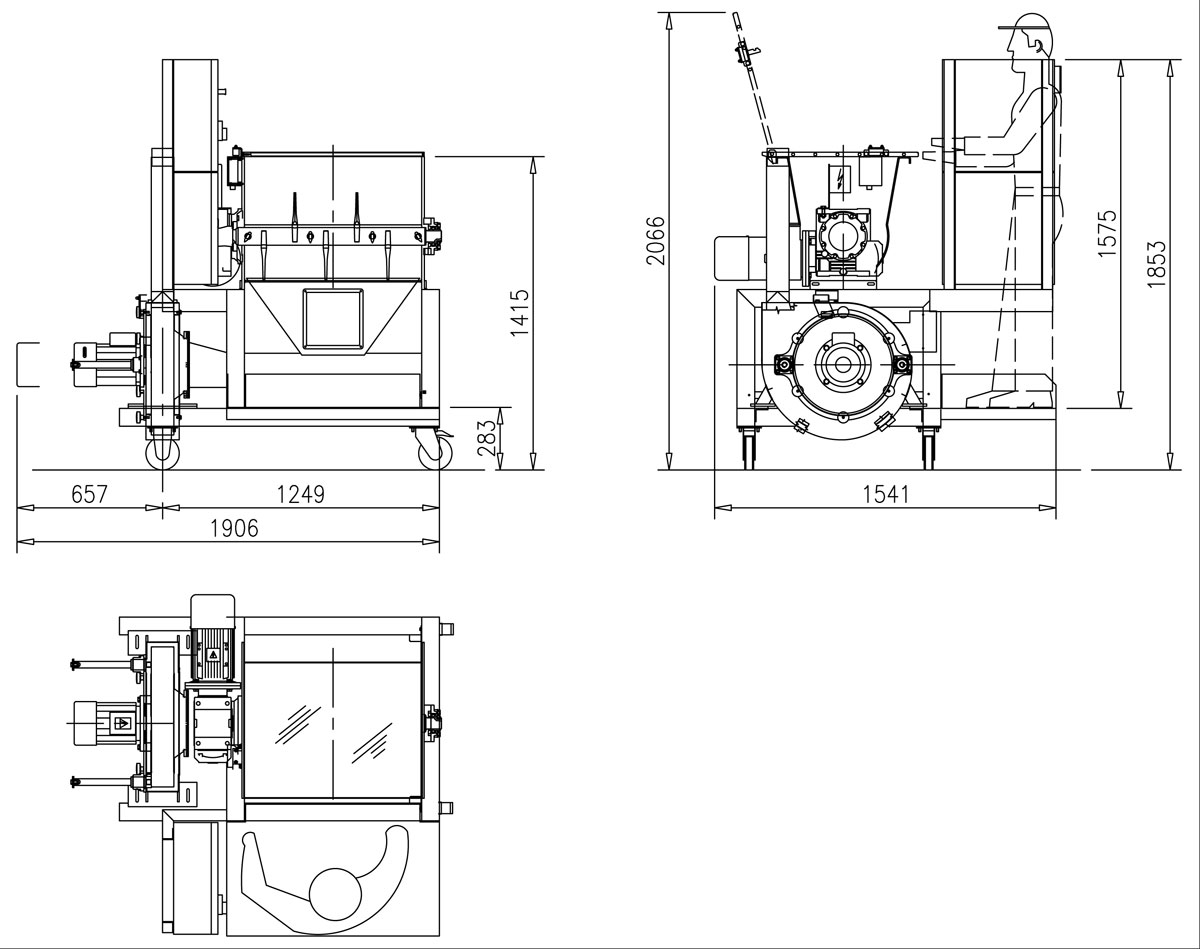

Dimensions


Rec 500 CAI
