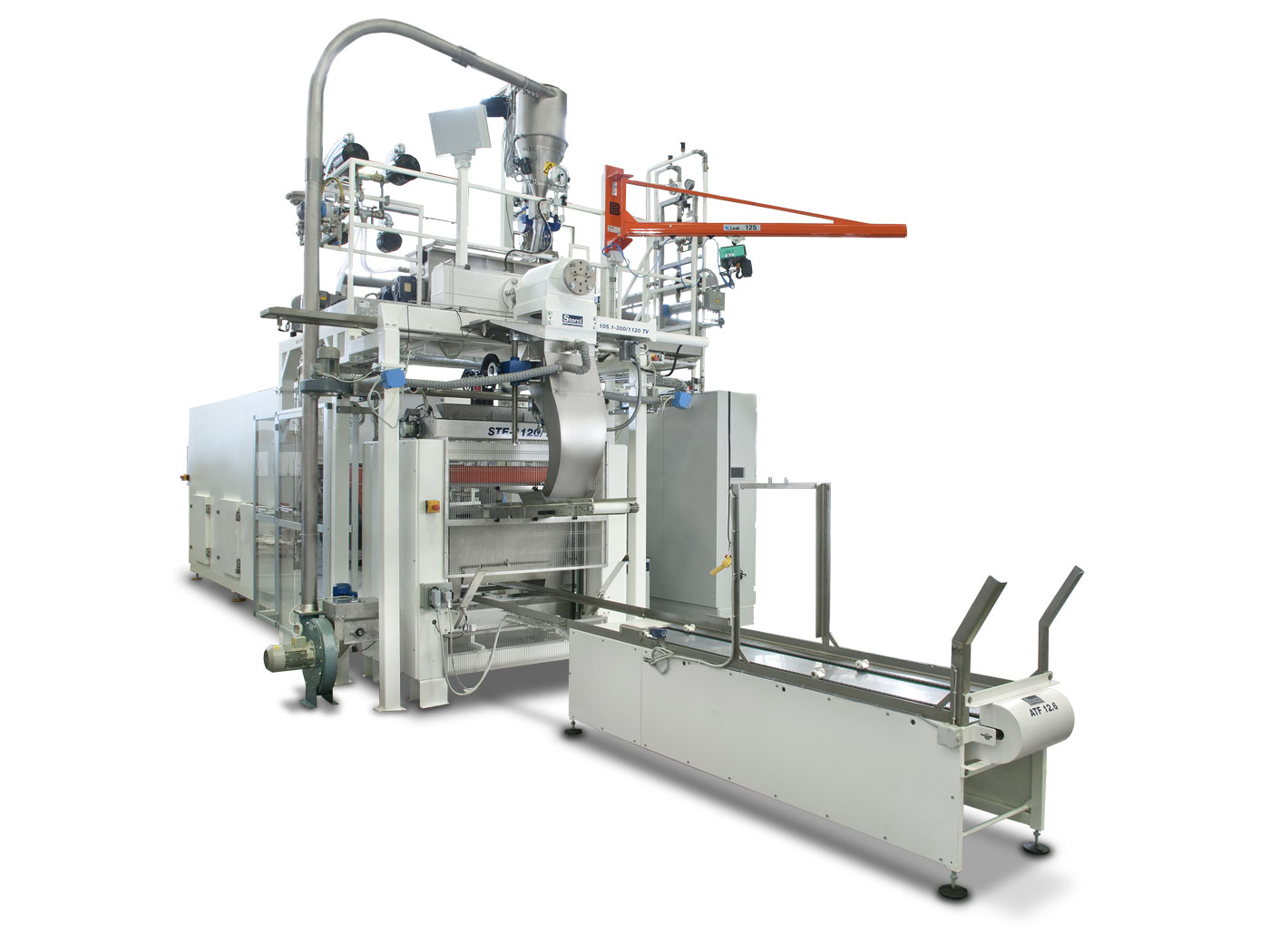

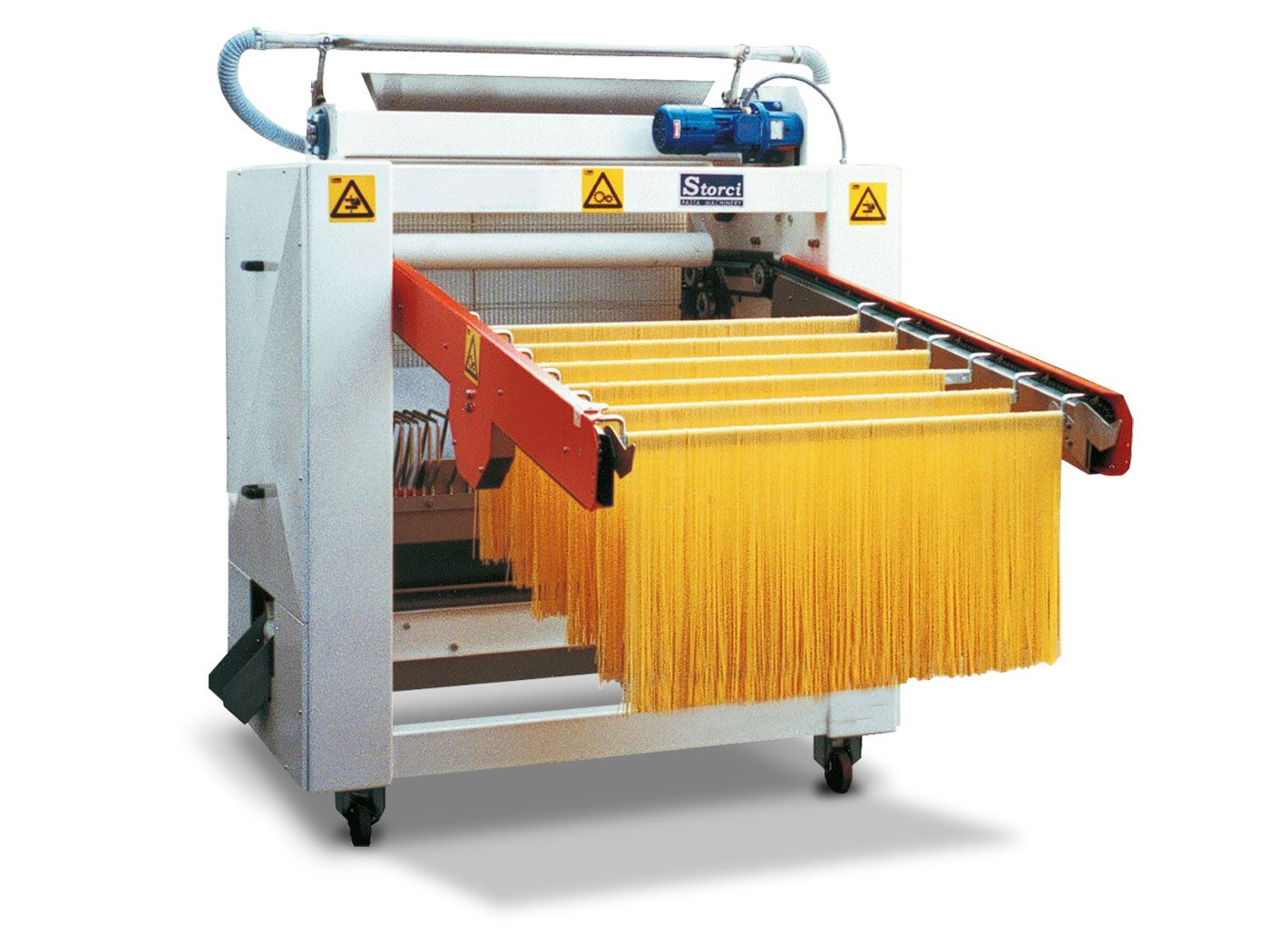

Automatic spreading machines STE 1120-1500

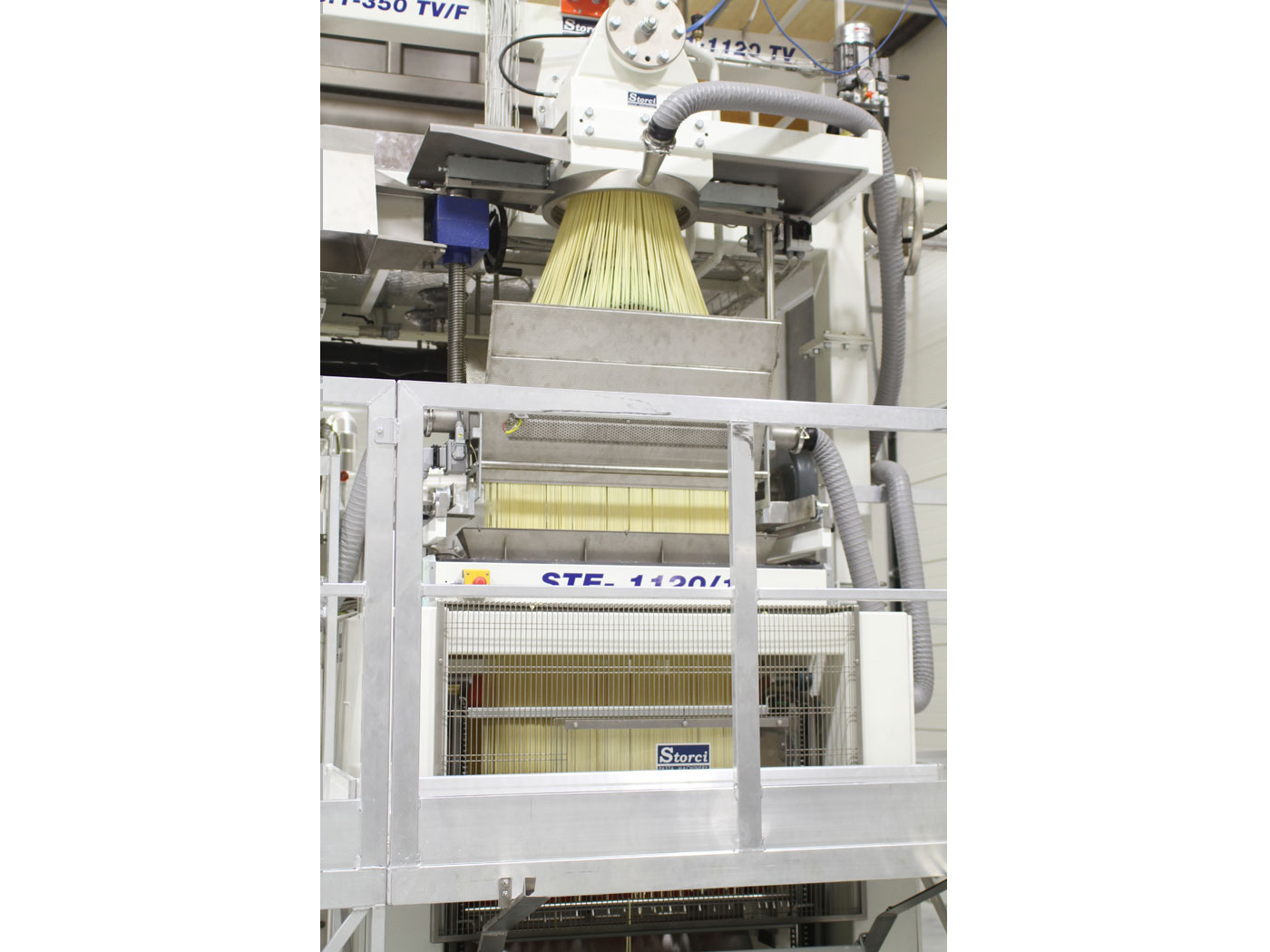

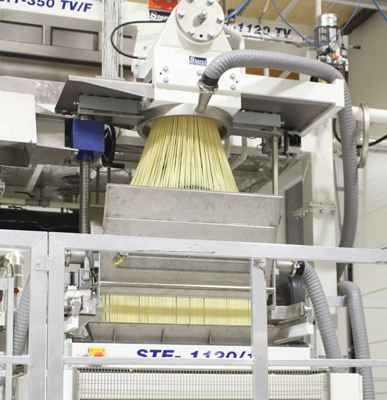

Spreading machine suitable for long-cut pasta lines to be coupled to linear and circular heads (*). PLC control. The new design, the use of new materials, the technical solutions adopted and the particularly sturdy framework have made it possible to construct easy-to-clean and low-maintenance machines.

(*) with spreading cone for circular head



Key features


  • Automatic spreading machine for long-cut pasta with 1120 and 1500 mm sticks
  • Standard pasta types (spaghetti, tagliatelle, etc.)
  • Automatic system for collecting and grinding pasta scraps
  • Automatic stick pick-up and regulation of the pasta cutting length

Main technical features

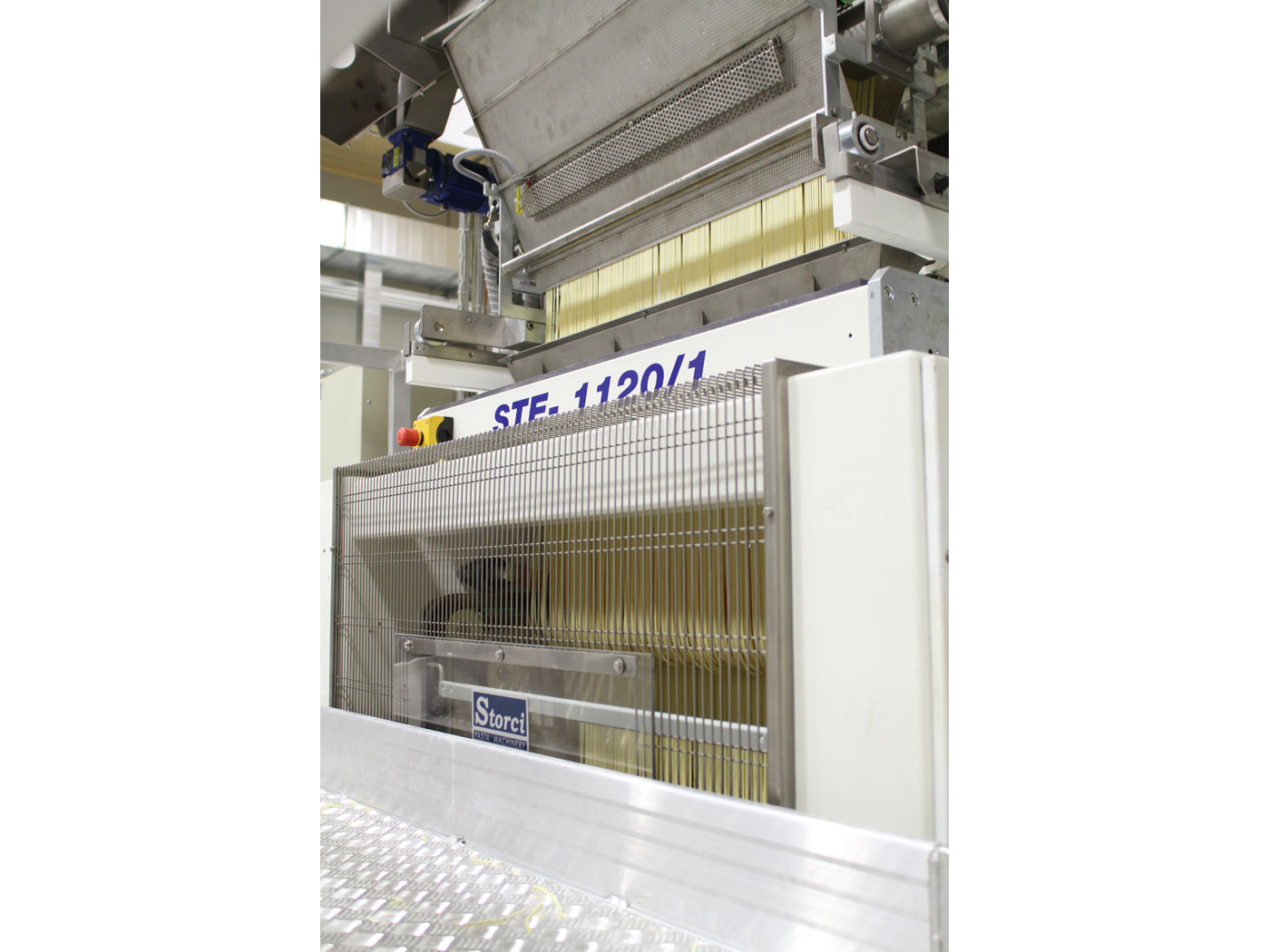

Spreading machine STE 1120-1500





Easy-to-clean and low-maintenance machines

  • Empty stick accumulation guides with manual feed
  • Automatic pick-up of the sticks by means of chains with loops
  • Upper ventilation ring for surface drying the pasta
  • Arms with chains for automatic feeding of the long-cut pasta pre-drying tunnel
  • Sickle bar trimmer
  • Long cut of the pasta: 580 mm
  • Pneumatic conveyor system for taking pasta scraps to the press kneader, complete with fan-grinder, stainless steel transport piping, decantation cyclone and vacuum seal valve
  • Painted steel structure
  • Short-cut pasta conveyor belt and tray passage system for special Omnia lines.



Production table

  STE 1120 STE 1500
Nominal stick length (mm) 1120 1500
Dry production (kg/h) for standard pasta types 400 500
Tray passage system yes yes
Cutting length (mm) 580 580
Power installed (kW) 8 8

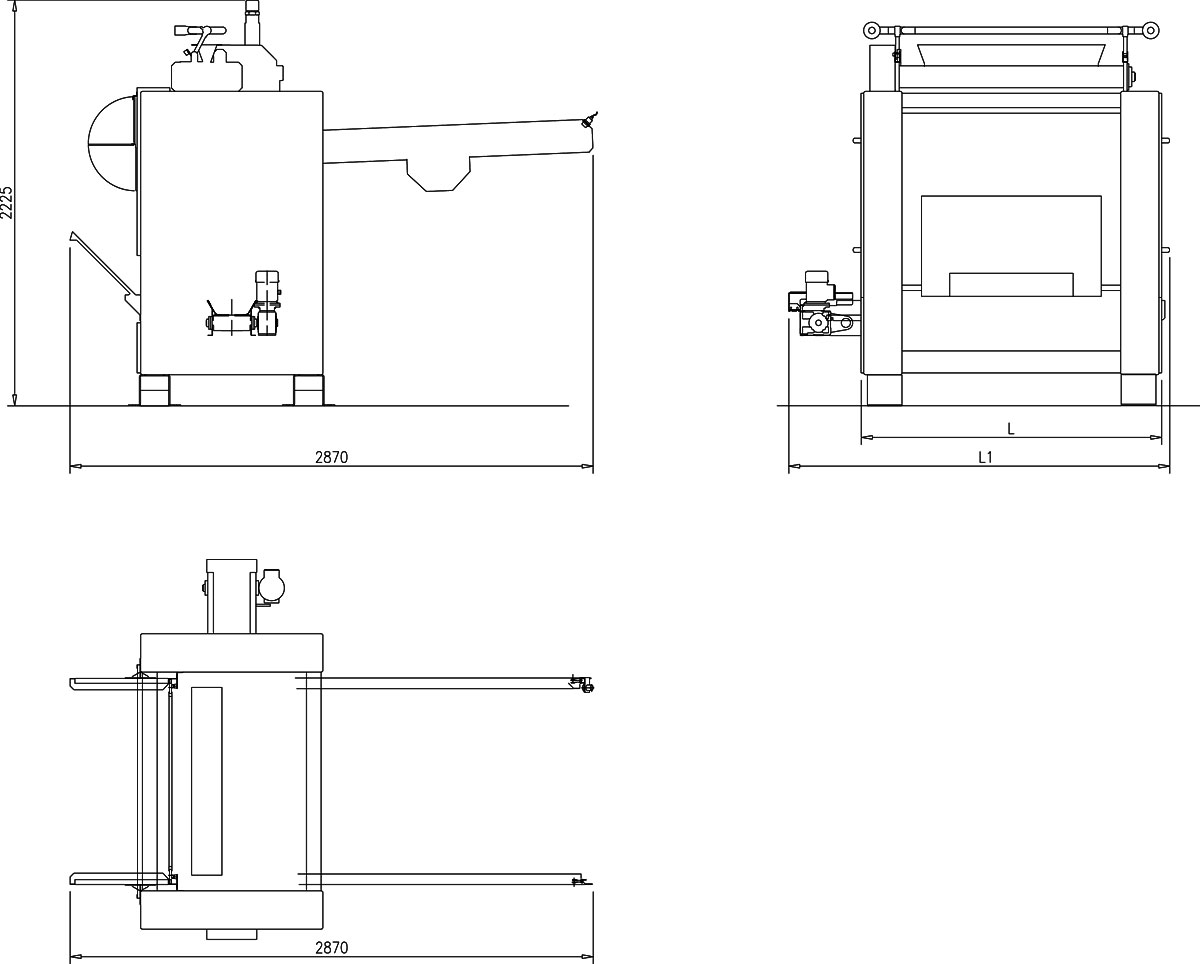

Size (mm) 2090x2870x2225 2090x2870x2225

Standard long-cut (e.g. spaghetti) Ø max. 1.7 mm
Bucati (Tubular pasta) (e.g. bucatini) Ø max. 3.5 mm
Tagliatelle: max. width 6 mm
Bucati speciali (special tubular pasta) (candele, ziti, etc.)
American lasagna
Fusilli bucati lunghi (long hollow fusilli)

Notes: the data provided is purely indicative and not binding as it may be subject to the variability of products and the line in which units are installed
